Aqua Medic SmartDrift 7.1

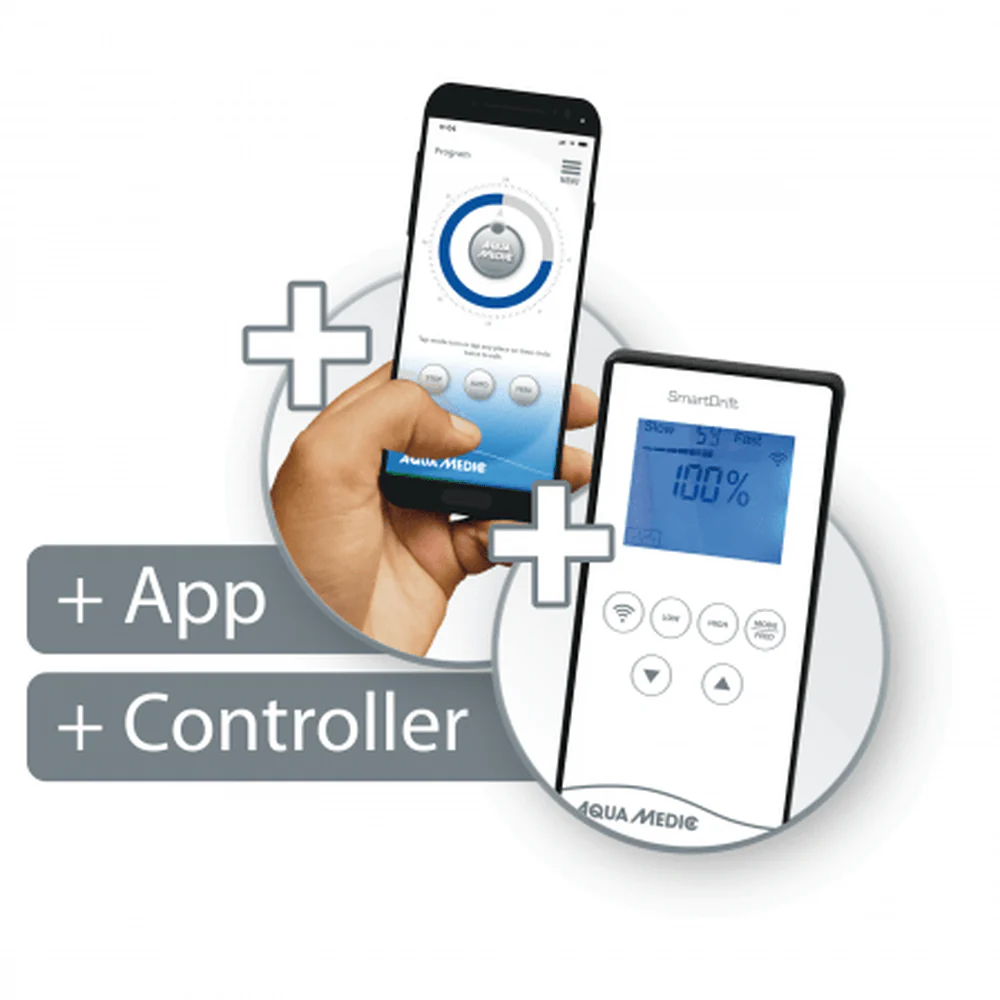

• Control and programming via App (iTunes and Google Playstore) or manually via the controller

• Simultaneous control of several pumps possible

• Multiprogramming of pumps via master-slave or cross-flow possible

• Different flow patterns can be set

• Feeding pause at the touch of a button

• New flow pattern due to innovative impeller technology ensures extreme smooth running

• Polished ceramic shaft and bearings for quiet operation and low maintenance

• Power-saving D/C motor 24 V, high efficiency

• 0 - 10 V connection for external control options



Type	SmartDrift 3.1	SmartDrift 7.1	SmartDrift 11.1
For aquaria up to	300 l	800 l	1,500 l
Capacity adjustable	up to 4,600 l/h	up to 10,500 l/h	up to 16,000 l/h
Power consumption	3 - 15 watts	8 - 25 watts	10 - 35 watts
Power supply pump	24 V
Power supply transformer	100 - 240 V / 50 - 60 Hz
Protection rating	IP X8
Dimensions app.	ca. 55 mm, Ø 65 mm	ca. 65 mm, Ø 75 mm	ca. 70 mm, Ø 85 mm
Magnet holder for glass thickness up to	10 mm	12 mm	15 mm

Optional:

Extension cord

Extension cord 1.8 m, for cable extension between pump and controller. Please note: Only one extension cord per controller may be used. Never connect more than one extension cable to a controller as this may cause damage and void warranty.
